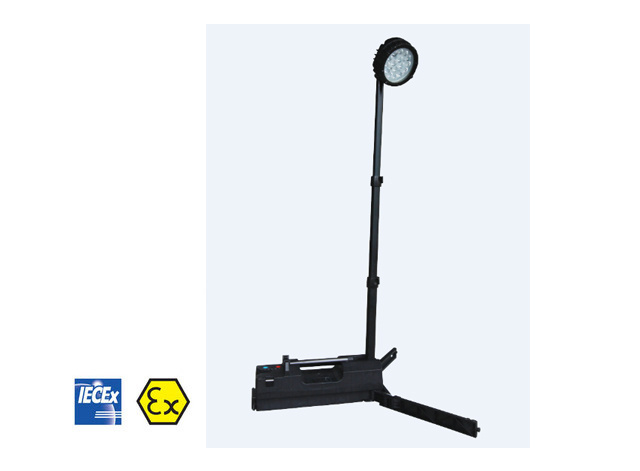

EXPLOSION-PROTECTED HAND LAMP

JIW5282

● Designed for Zone I and Zone II applications

● Available with spotlight, working light and yellow warning light

● Operating duration: more than 10 hours (high beam mode), more than 24 hours (medium beam mode), more than 80 hours (low beam mode)

● Fast charging mode allowing for higher than 80% of capacity after 2-hour charging and full charging within 3.5 hours

● Indication of residual battery capacity and low capacity warning

● Designed with various carrying modes, such as magnetic adsorption, put on the ground, hand carrying

● Designed for Zone I and Zone II applications

● Available with spotlight, working light and yellow warning light

● Operating duration: more than 10 hours (high beam mode), more than 24 hours (medium beam mode), more than 80 hours (low beam mode)

● Fast charging mode allowing for higher than 80% of capacity after 2-hour charging and full charging within 3.5 hours

● Indication of residual battery capacity and low capacity warning

● Designed with various carrying modes, such as magnetic adsorption, put on the ground, hand carrying

Certification & Approvals
	II 2 G Ex db eb ib mb IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db	SEV 20 ATEX 0361 X
Material
	Enclosure	Polycarbonate
	Transparent cover	Tempered glass
Electrical Parameter
	Input	100V - 240V AC 50Hz / 60Hz
	Output	11.1 V DC
	Ambient temperature	-20℃ to +55℃
	Degree of protection	IP 66
Battery
	Type	Lithium battery
	Capacity	5 Ah
	Battery life	approx. 1000 cycles
	Charging time	< 3.5 h
	Operating duration	≥ 10 h (high beam) 　≥ 24 h (medium beam) ≥ 80 h (low beam)
Light Source
	Type	LED
	Current	1.08 A (hign beam) 0.36 A (medium beam) 0.09 A (low beam)
	Watts	12 W
	Lamp life	≥ 100000 h
Conformity To Standards
	IEC60079 / IEC60598
